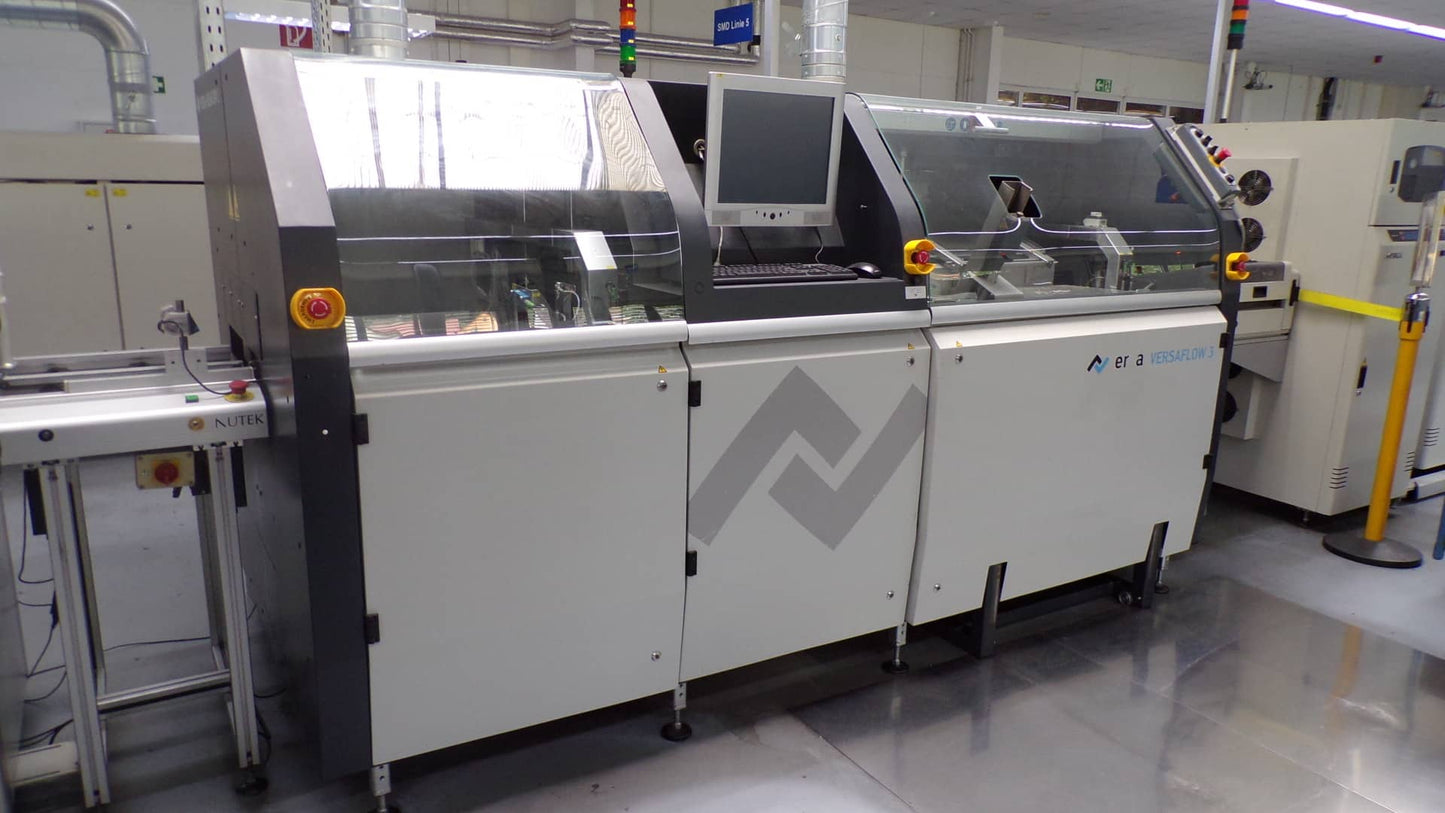

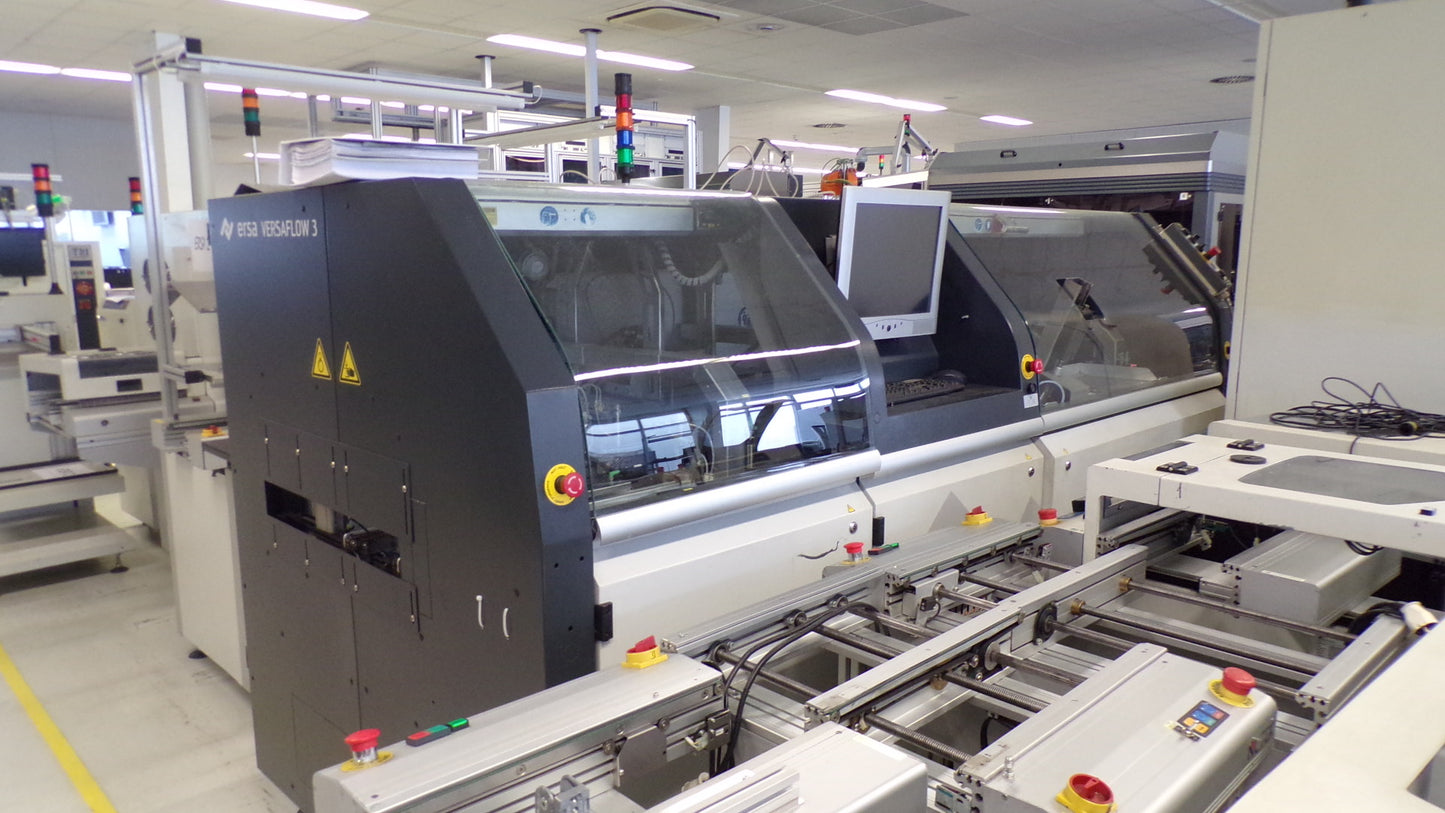

ERSA 3/45 with Multiwave, vintage 2015

Good working condition selective soldering machine.

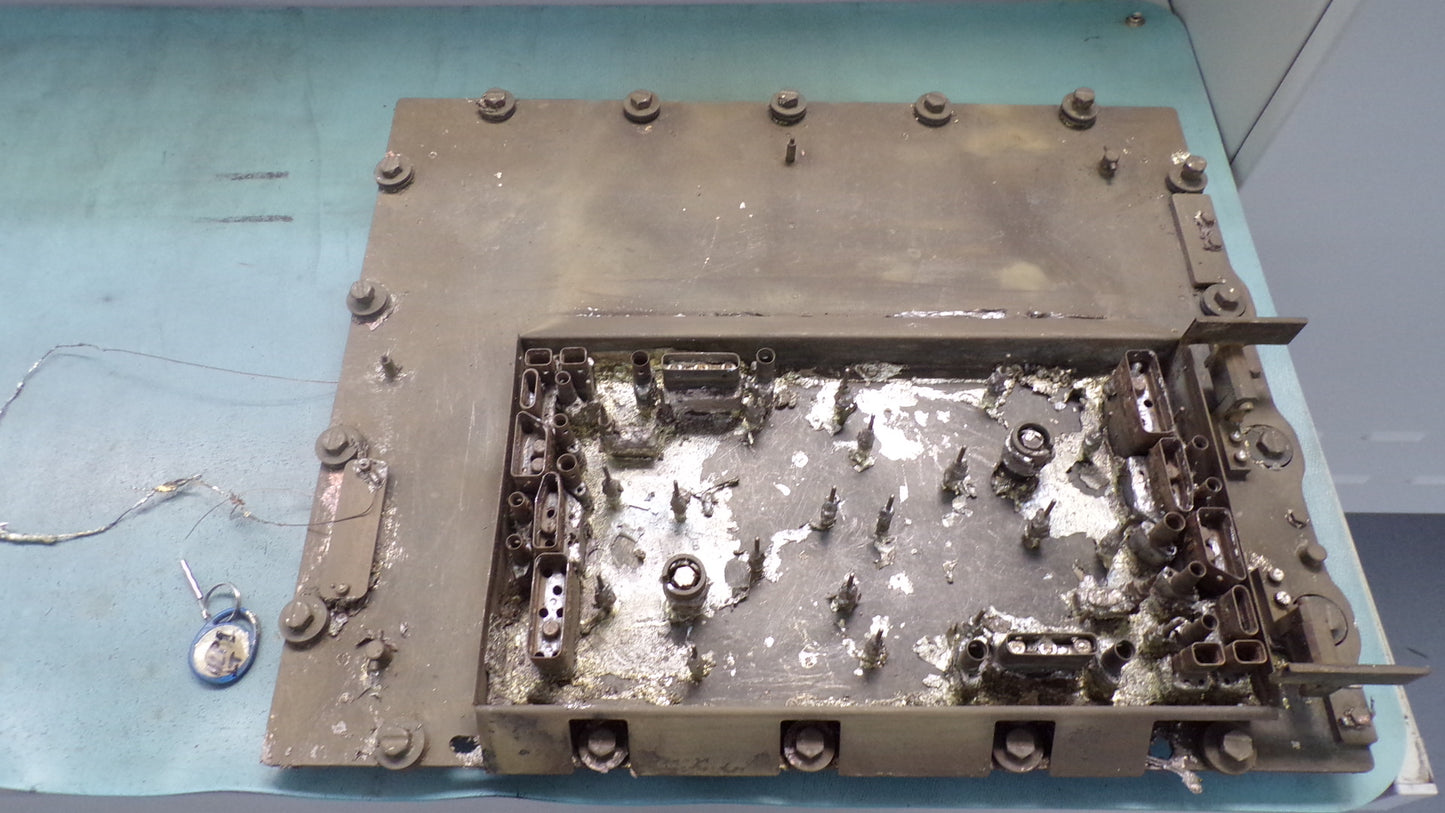

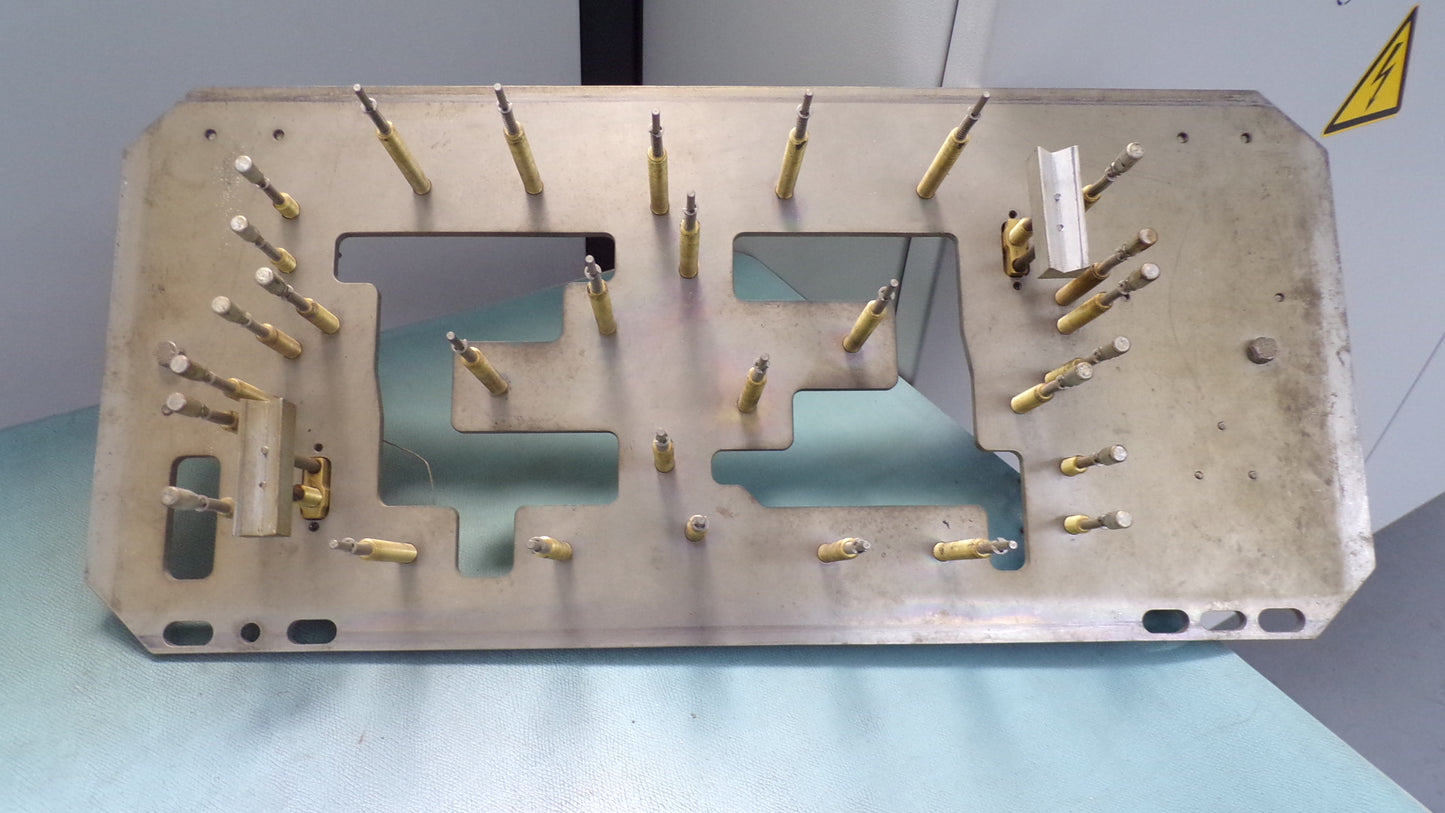

Precision spray fluxer, + option: 2nd spray head, + Visualization of the spray positions with CAD assistant - Flux level monitoring - Infrared pre-heating below, consisting of 8 short-wave quartz radiators, + Option: convection - PC control, Windows 7 Professional, UPS for PC - Exhaust air monitoring - Product visualization - Dip solder pot XL for product-specific solder nozzle plates, incl. Asfahrunit For carrying out maintenance units - max. soldering area: 360x460mm - Monitoring of the ingot feed and automatic tracking Solder bar size: 69x40x525, max 5kg - Coding system for nozzle plates and component hold-down devices - SMEMA - Inline interface, 940mm - 965mm - Matrix code scanner (2D code) for product identification - Traceability/ Trace interface. SW versionVisa V4.043.001 and SPS_V04.043.003.

Further information, please request.
